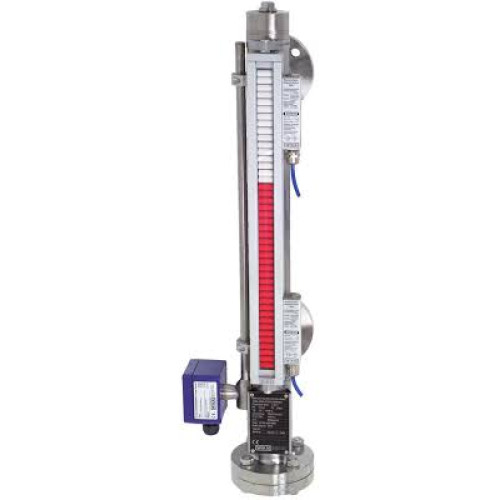

WIKA Magnetic Level Gauge Type BNA-S2

BNA-BMDGAA531RZZZG3ZZA531A33112XXXXXXZZZZZZ

BFT-CMB053007000275-0102TZZZZZZZ

BNA-2"/600/RF-M490-V60x2-MRF-ZTS415/PN100/A110

Pressure: 53,0 bar; Temp.: -10°C...275 °C; Fluid density: 700 kg/m3

Design code: PED 2014/68/EU (AD2000)

Classification to PED 2014/68/EU: Category II, Module A2, Fluid Group 1

Test pressure: 103 bar

Chamber dimensions: OD 60.3 x 2 mm Stainless steel 316Ti (EN 1.4571)

Process connection: Flange ASME B16.5 2" 600# Form RF

Distance C-to-C: 490 mm

Measuring range: 490 mm

Chamber end top: Pipe cap

Chamber end bottom: Flange ASME B16.5 2" 600# Form RF

Vent connection: Vent plug 1"NPT

Drain connection: Flange ASME B16.5 1" 600# Form RF

Level indicator: BMD-FA, aluminium housing with SS flaps

Dampening element: Dampening spring, bottom, with cover

Gasket(s): Flat type base material + graphite

Bolting: M series, stainless steel 316 (1.4404 / A4-70)

Top stand-off (T): 100 mm

Manufacturer: WIKA
